Working with Spectrum1Ds

As described in more detail in Overview of How Specutils Represents Spectra, the core data class in specutils for a single spectrum is Spectrum1D. This object can represent either one or many spectra, all with the same spectral_axis. This section describes some of the basic features of this class.

Basic Spectrum Creation

The simplest (and most powerful) way to create a Spectrum1D is to create it explicitly from arrays or Quantity objects:

>>> import numpy as np
>>> import astropy.units as u
>>> import matplotlib.pyplot as plt
>>> from specutils import Spectrum1D
>>> flux = np.random.randn(200)*u.Jy
>>> wavelength = np.arange(5100, 5300)*u.AA
>>> spec1d = Spectrum1D(spectral_axis=wavelength, flux=flux)

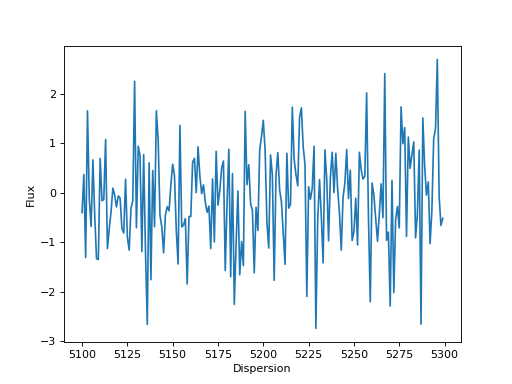

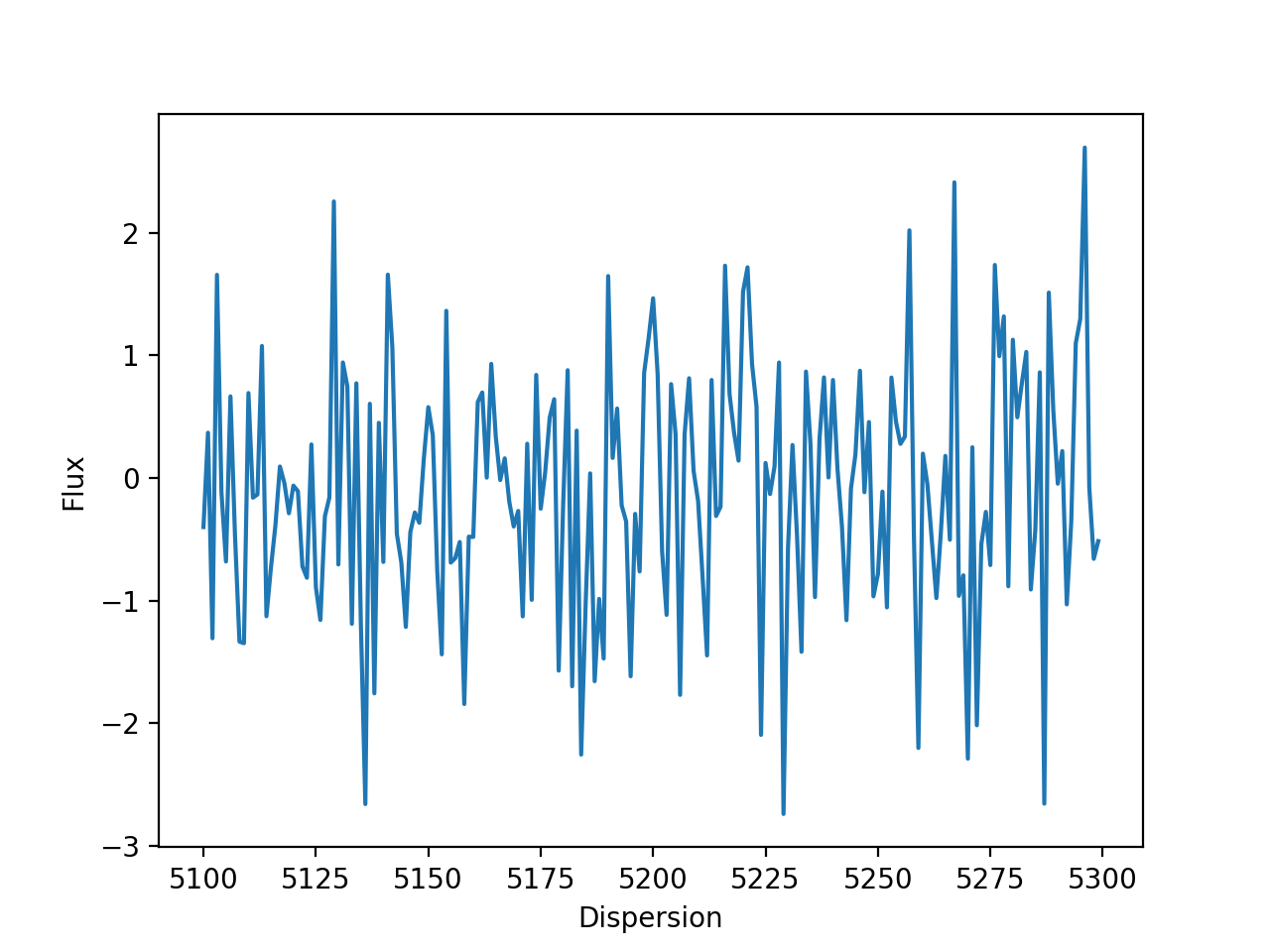

>>> ax = plt.subplots()[1]
>>> ax.plot(spec1d.spectral_axis, spec1d.flux)
>>> ax.set_xlabel("Dispersion")
>>> ax.set_ylabel("Flux")

(Source code, png, hires.png, pdf)

Note

Note that the spectral_axis can also be provided as a SpectralAxis object, and in fact will internally convert the spectral_axis to SpectralAxis if it is provided as an array or Quantity.

Reading from a File

specutils takes advantage of the Astropy IO machinery and allows loading and writing to files. The example below shows loading a FITS file. While specutils has some basic data loaders, for more complicated or custom files, users are encouraged to create their own loader.

>>> from specutils import Spectrum1D
>>> spec1d = Spectrum1D.read("/path/to/file.fits")

Most of the built-in specutils default loaders can also read an existing astropy.io.fits.HDUList object or an open file object (as resulting from e.g. streaming a file from the internet). Note that in these cases, a format string corresponding to an existing loader must be supplied because these objects lack enough contextual information to automatically identify a loader.

>>> from specutils import Spectrum1D
>>> import urllib
>>> specs = urllib.request.urlopen('https://data.sdss.org/sas/dr14/sdss/spectro/redux/26/spectra/0751/spec-0751-52251-0160.fits')
>>> Spectrum1D.read(specs, format="SDSS-III/IV spec")
<Spectrum1D(flux=<Quantity [30.596626,...]...>

Note that the same spectrum could be more conveniently downloaded via astroquery, if the user has that package installed:

>>> from astroquery.sdss import SDSS
>>> specs = SDSS.get_spectra(plate=751, mjd=52251, fiberID=160)
>>> Spectrum1D.read(specs[0], format="SDSS-III/IV spec")
<Spectrum1D(flux=<Quantity [30.596626,...]...>

List of Loaders

The Spectrum1D class has built-in support for various input and output formats. A full list of the supported formats is shown in the table below.

Format	Read	Write	Auto-identify
6dFGS-split	Yes	No	Yes
6dFGS-tabular	Yes	No	Yes
APOGEE apStar	Yes	No	Yes
APOGEE apVisit	Yes	No	Yes
APOGEE aspcapStar	Yes	No	Yes
ASCII	Yes	No	Yes
ECSV	Yes	No	Yes
HST/COS	Yes	No	Yes
HST/STIS	Yes	No	Yes
IPAC	Yes	No	Yes
JWST s2d	Yes	No	Yes
JWST s3d	Yes	No	Yes
JWST x1d	Yes	No	Yes
MUSCLES SED	Yes	No	Yes
SDSS-I/II spSpec	Yes	No	Yes
SDSS-III/IV spec	Yes	No	Yes
Subaru-pfsObject	Yes	No	Yes
iraf	Yes	No	Yes
tabular-fits	Yes	Yes	Yes
wcs1d-fits	Yes	No	Yes

More information on creating custom loaders can be found in the custom loading page.

Including Uncertainties

The Spectrum1D class supports uncertainties, and arithmetic operations performed with Spectrum1D objects will propagate uncertainties.

Uncertainties are a special subclass of NDData, and their propagation rules are implemented at the class level. Therefore, users must specify the uncertainty type at creation time

>>> from specutils import Spectrum1D
>>> from astropy.nddata import StdDevUncertainty

>>> spec = Spectrum1D(spectral_axis=np.arange(5000, 5010)*u.AA, flux=np.random.sample(10)*u.Jy, uncertainty=StdDevUncertainty(np.random.sample(10) * 0.1))

Warning

Not defining an uncertainty class will result in an UnknownUncertainty object which will not propagate uncertainties in arithmetic operations.

Defining WCS

Specutils always maintains a WCS object whether it is passed explicitly by the user, or is created dynamically by specutils itself. In the latter case, the user need not be aware that the WCS object is being used, and can interact with the Spectrum1D object as if it were only a simple data container.

Currently, specutils understands two WCS formats: FITS WCS and GWCS. When a user does not explicitly supply a WCS object, specutils will fallback on an internal GWCS object it will create.

Note

To create a custom adapter for a different WCS class (i.e. aside from FITSWCS or GWCS), please see the documentation on WCS Adapter classes.

Providing a FITS-style WCS

>>> from specutils.spectra import Spectrum1D
>>> import astropy.wcs as fitswcs
>>> import astropy.units as u
>>> import numpy as np
>>> my_wcs = fitswcs.WCS(header={'CDELT1': 1, 'CRVAL1': 6562.8, 'CUNIT1': 'Angstrom', 'CTYPE1': 'WAVE', 'RESTFRQ': 1400000000, 'CRPIX1': 25})
>>> spec = Spectrum1D(flux=[5,6,7] * u.Jy, wcs=my_wcs)
>>> spec.spectral_axis
<Quantity [ 6538.8, 6539.8, 6540.8] Angstrom>
>>> spec.wcs.pixel_to_world(np.arange(3))
array([6.5388e-07, 6.5398e-07, 6.5408e-07])

Multi-dimensional Data Sets

Spectrum1D also supports the multidimensional case where you have, say, an (n_spectra, n_pix) shaped data set where each n_spectra element provides a different flux data array and so flux and uncertainty may be multidimensional as long as the last dimension matches the shape of spectral_axis This is meant to allow fast operations on collections of spectra that share the same spectral_axis. While it may seem to conflict with the “1D” in the class name, this name scheme is meant to communicate the presence of a single common spectral axis.

Note

The case where each flux data array is related to a different spectral axis is encapsulated in the SpectrumCollection object described in the related docs.

>>> from specutils import Spectrum1D

>>> spec = Spectrum1D(spectral_axis=np.arange(5000, 5010)*u.AA, flux=np.random.sample((5, 10))*u.Jy)
>>> spec_slice = spec[0]
>>> spec_slice.spectral_axis
<Quantity [5000., 5001., 5002., 5003., 5004., 5005., 5006., 5007., 5008., 5009.] Angstrom>
>>> spec_slice.flux
<Quantity [0.72722821, 0.32147784, 0.70256482, 0.04445197, 0.03390352,
       0.50835299, 0.87581725, 0.50270413, 0.08556376, 0.53713355] Jy>

While the above example only shows two dimensions, this concept generalizes to any number of dimensions for Spectrum1D, as long as the spectral axis is always the last.

Reference/API

Classes

Conf	Configuration parameters for specutils.
SpectralAxis	Coordinate object representing spectral values corresponding to a specific spectrum.
Spectrum1D([flux, spectral_axis, wcs, …])	Spectrum container for 1D spectral data.
SpectrumList	A list that is used to hold a list of Spectrum1D objects
